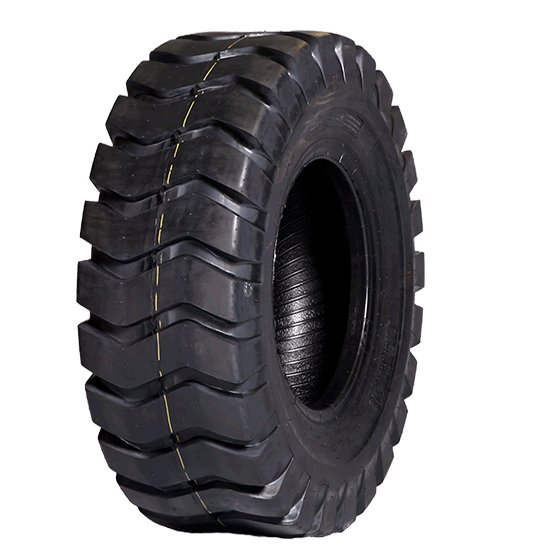

Specially desinged for cut and heat resistant compound.
Regular type of tread pattern suitable for hard rock surface and haulage service.
Business Email: sales@vglorygroup.com
Supervision Email: vglory@vglorygroup.com
Search
Business Email: sales@vglorygroup.com
Supervision Email: vglory@vglorygroup.com
Specially desinged for cut and heat resistant compound.
Regular type of tread pattern suitable for hard rock surface and haulage service.
Size | PR | T.D. (mm) | S.R. | S.W. (mm) | O.D. (mm) | Max Loading(kg) | Pressure(kpa) | Type | Code | ||
50km/h | 10km/h | 50km/h | 10km/h | ||||||||
14.00-24 | 16 | 25 | 10.00 | 375 | 1370 | 4000 | 7300 | 375 | 550 | TT/TL | H108A L-3 E-3 |
20 | 4625 | 8500 | 475 | 700 | |||||||
24 | 5150 | 9500 | 575 | 850 | |||||||
28 | 5600 | 10000 | 650 | 925 | |||||||
16.00-24 | 20 | 28 | 11.25/2.0 | 430 | 1495 | 5450 | 9750 | 400 | 550 | ||
24 | 6000 | 10600 | 475 | 650 | |||||||
28 | 6700 | 11500 | 575 | 750 | |||||||
32 | 7300 | 12500 | 650 | 875 | |||||||
17.5-25 | 16 | 28 | 14.00/1.5 | 445 | 1350 | 4250 | 7300 | 300 | 475 | ||
20 | 5000 | 8250 | 400 | 575 | |||||||
20.5-25 | 20 | 30 | 17.00/2.0 | 520 | 1490 | 6000 | 9500 | 325 | 450 | ||
24 | 6700 | 10300 | 400 | 525 | |||||||
28 | 7500 | 11500 | 475 | 625 | |||||||
23.5-25 | 20 | 33 | 19.50/2.5 | 595 | 1615 | 7300 | 10900 | 300 | 375 | ||
24 | 8000 | 12500 | 350 | 475 | |||||||
28 | 8750 | 13600 | 400 | 550 | |||||||
26.5-25 | 28 | 35 | 22.00/3.0 | 675 | 1750 | 10000 | 15500 | 350 | 475 | TL | |
32 | 11200 | 17000 | 425 | 550 | |||||||
29.5-25 | 28 | 38 | 25.00/3.5 | 750 | 1875 | 11500 | 17500 | 325 | 425 | ||
34 | 12500 | 19000 | 375 | 500 | |||||||
Size | PR | T.D. (mm) | S.R. | S.W. (mm) | O.D. (mm) | Max Loading(kg) @10km/h | Pressure(kpa) @10km/h | Type | Code | ||
16/70-24 | 14 | 20 | 13(SDC) | 410 | 1175 | 5600 | 450 | TT | H108A L-3 E-3 | ||
16/70-20 | 14 | 30 | 13(SDC) | 410 | 1150 | 5150 | 450 | ||||
18 | 5800 | 550 | |||||||||
16/70-20 | 14 | 20 | 13(SDC) | 410 | 1150 | 5150 | 450 | ||||
18 | 5800 | 550 | |||||||||
16/70-20 | 14 | 22 | 13(SDC) | 410 | 1050 | 5150 | 450 | ||||
18 | 5800 | 550 | |||||||||
16/60-20 | 14 | 20 | 13(SDC) | 410 | 1010 | 5150 | 450 | ||||
20.5/70-16 | 14 | 22 | 10.00G | 335 | 910 | 1600 | 280 | ||||
16/70-16 | |||||||||||
20.5/70-16** | 14 | 17 | 10.00G | 335 | 910 | 1600 | 280 | ||||
16/70-16** | |||||||||||
14/90-16 | 10 | 16 | 7.0N | 270 | 882 | 1530 | 350 | ||||
12.00-16 | 12 | 17 | 6.50H | 255 | 890 | 1600 | 420 | ||||
8.25-16 | 8 | 16 | 6.5 | 235 | 865 | 1530 | 300 | ||||
7.50-16 | 8 | 16 | 5.5 | 215 | 815 | 750 | 150 | ||||
