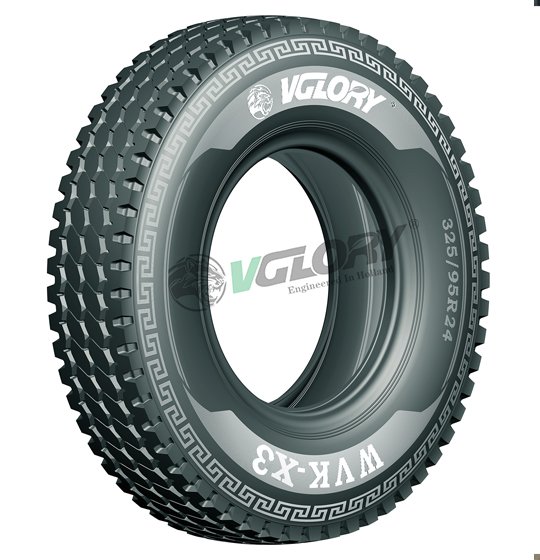

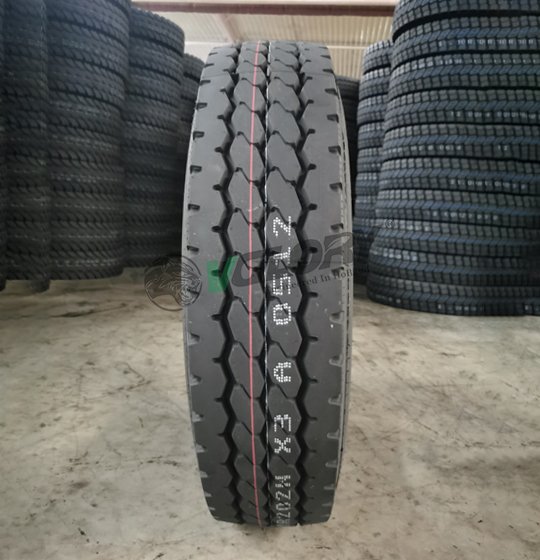

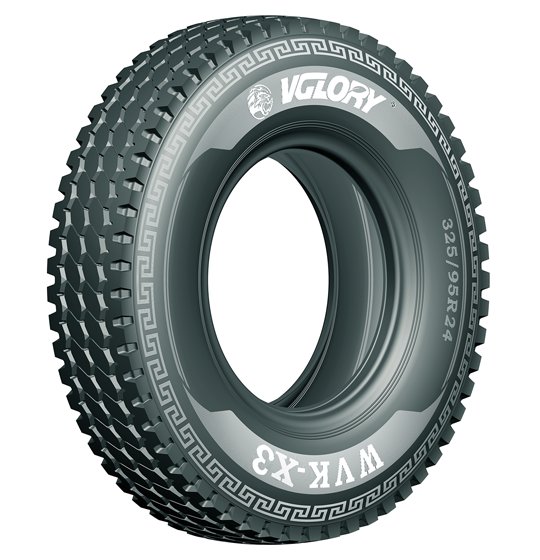

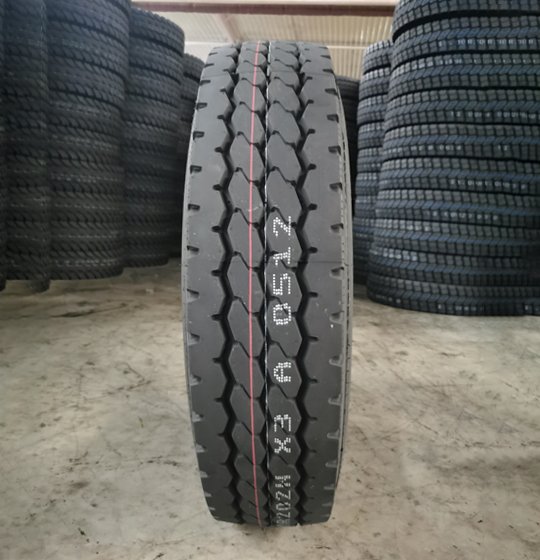

◎The large and deep grooves on the shoulders aim to increase the driving performance.
◎Three main longitudinal grooves provide good directional stability and reduce irregular wear and are adapted to various conditions.
◎Wider running surface and the puncture resistance formula reduce abrasion.
◎ size 1100/ 1200 /11R22.5 /12R22.5 is only used for container tractors and semi-trailers/container trailers
Size | PR | TT/TL | Load Index | Speed Rating | Standard Rim | T.D (mm) | Pressure | QTY PCS/40HQ | |
KPA | PSI | ||||||||
10.00R20 | 18 | TT | 149/146 | L | 7.50 | 18.5 | 930 | 135 | 260 |
11.00R20 | 18 | TT | 152/149 | L | 8.00 | 18.5 | 930 | 135 | 258 |
12.00R20 | 20 | TT | 156/153 | K | 8.50 | 17.5 | 900 | 130 | 228 |
325/95R24 (12.00R24) | 22 | TL | 162/160 | K | 9.00 | 18.0 | 850 | 125 | 196 |
