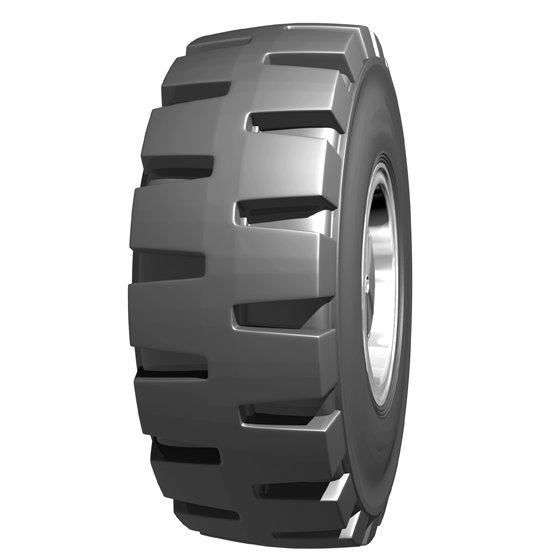

1.Extra deep tread pattern is specially designed for loaders and dozers on extremely rocky surfaces in open pit,quarries and underground mines.
2.Superior sidewall cut resistance.
3.Long tread life.
1.Extra deep tread pattern is specially designed for loaders and dozers on extremely rocky surfaces in open pit,quarries and underground mines.
2.Superior sidewall cut resistance.
3.Long tread life.
Size | STAR RATING | TYPE | TRA CODE | STANDARD RIM | TREAD DEPTH (mm) | LOAD INDEX | SECTION WIDTH (mm) | OVERALL DIAMETER | MAXIMUM LOAD& INFLATION PRESSURE (kg/kpa) | |
50km/h | 10km/h | |||||||||
| 17.5R25 | ★★★ | TL | L-5 | 14.00/1.5 | 64 | 193A2 | 445 | 1399 | 11500/750 | |
| 20.5R25 | ★★ | TL | L-5 | 17.00/20 | 68 | 193A2 | 521 | 1548 | 11500/650 | |
| 23.5R25 | ★★ | TL | L-5 | 19.5/2.5 | 78 | 201A2 | 597 | 1673 | 14500/600(GB) | |
| 26.5R25 | ★★ | TL | L-5 | 22.00/3.0 | 88 | 209A2 | 673 | 1798 | 18500/650 | |
| 29.5R25 | ★★ | TL | L-5 | 25.00/3.5 | 95 | 216A2 | 749 | 1921 | 22400/650 | |
| 35/65R33 | ★★ | TL | L-5 | 28.00/3.5 | 95 | 223A2 | 890 | 2075 | 27250/650(ETRTO) | |
