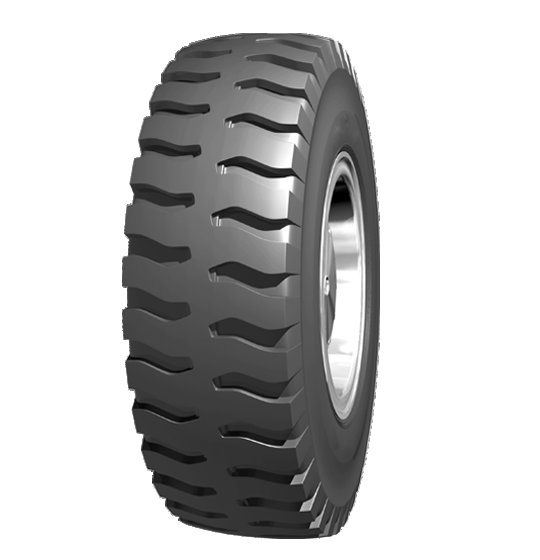

1.Deep tread designed for severe and rocky surfaces.
2.Used for underground mining,open pits and quarries.
3.Specially designed sidewall provides extended.
4.Excellent combination of traction,stability and comfortable ride.
1.Deep tread designed for severe and rocky surfaces.
2.Used for underground mining,open pits and quarries.
3.Specially designed sidewall provides extended.
4.Excellent combination of traction,stability and comfortable ride.
Size | STAR RATING | TYPE | TRA CODE | STANDARD RIM | TREAD DEPTH (mm) | LOAD INDEX | SECTION WIDTH (mm) | OVERALL DIAMETER (mm) | MAXIMUM LOAD& INFLATION PRESSURE (kg/kpa) | |
50km/h | 10km/h | |||||||||
18.00R33 | ★★ | TL | E-4 | 13.00/2.5 | 49 | 191B | 500 | 1875 | 10900/700 | |
★★★ | TL | E-4 | 13.00/2.5 | 49 | 196B | 500 | 1875 | 12500/900 | ||
21.00R35 | ★★ | TL | E-4 | 15.00/3.0 | 53 | 210B | 555 | 2040 | 14500/700 | |
24.00R35 | ★★ | TL | E-4 | 17.00/3.5 | 58 | 209B | 655 | 2175 | 18500/700 | |
★★★ | TL | E-4 | 17.00/3.5 | 58 | 214B | 655 | 2175 | 21200/900 | ||
